Emissions - ICE
Standard Euro Emissions: EURO 6
WLTP - CO2 (g/km) - Comb: 135
WLTP - CO2 (g/km) - Comb - Max: 144
WLTP - CO2 (g/km) - Comb - Min: 135
WLTP - CO2 (g/km) - Extra High - Max: 145
WLTP - CO2 (g/km) - Extra High - Min: 133
WLTP - CO2 (g/km) - High - Max: 125
WLTP - CO2 (g/km) - High - Min: 118
WLTP - CO2 (g/km) - Low - Max: 184
WLTP - CO2 (g/km) - Low - Min: 178
WLTP - CO2 (g/km) - Medium - Max: 144
WLTP - CO2 (g/km) - Medium - Min: 137
Engine and Drive Train
Compression Ratio: 16.0:1
Cylinders - Bore (mm): 81.0
Cylinders - Stroke (mm): 95.5
Engine Layout: FRONT TRANSVERSE
Fuel Delivery: COMMON RAIL
Fuel Consumption - ICE
EC Directive 1999/100/EC Applies: No
EC Extra Urban (mpg): 74.3
WLTP - FC (l/100km) - Comb - Max: 5.5
WLTP - FC (l/100km) - Comb - Min: 5.2
WLTP - FC (l/100km) - Extra High - Max: 5.5
WLTP - FC (l/100km) - Extra High - Min: 5.1
WLTP - FC (l/100km) - High - Max: 4.8
WLTP - FC (l/100km) - High - Min: 4.5
WLTP - FC (l/100km) - Low - Max: 7
WLTP - FC (l/100km) - Low - Min: 6.8
WLTP - FC (l/100km) - Medium - Max: 5.5
WLTP - FC (l/100km) - Medium - Min: 5.2
WLTP - MPG - Comb - Max: 51.4
WLTP - MPG - Comb - Min: 54.3
WLTP - MPG - Extra High - Max: 51.4
WLTP - MPG - Extra High - Min: 55.4
WLTP - MPG - High - Max: 58.9
WLTP - MPG - High - Min: 62.8
WLTP - MPG - Low - Max: 40.4
WLTP - MPG - Low - Min: 41.5
WLTP - MPG - Medium - Max: 51.4
WLTP - MPG - Medium - Min: 54.3
General
Alternative Fuel Qualifying: No
Based On ID: Not Available

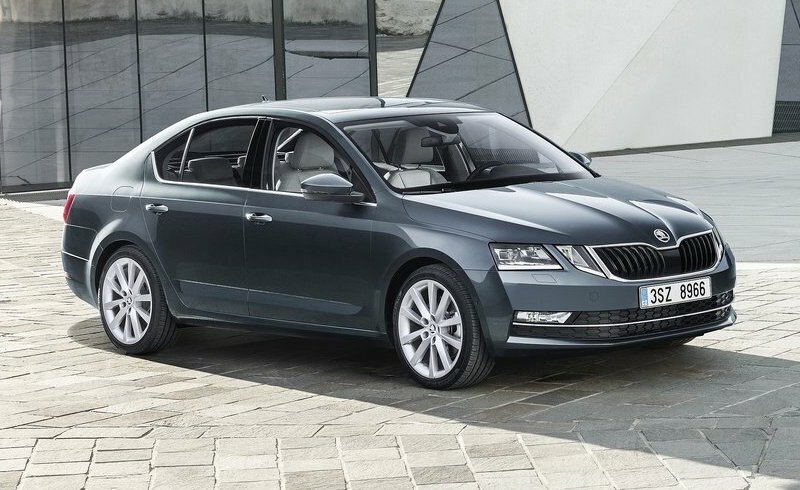

Coin Description: TDI 150 4x4
Did at least one aspect of this vehicle's safety give cause for concern?: No
Insurance Group 1 - 50 Effective January 07: 19E
Manufacturers Corrosion Perforation Guarantee - Years: 12
Manufacturers Paintwork Guarantee - Years: 3
NCAP Adult Occupant Protection %: 92
NCAP Child Occupant Protection %: 88
NCAP Overall Rating - Effective February 09: 5
NCAP Pedestrian Protection %: 73
Standard manufacturers warranty - Mileage: 60000
Standard manufacturers warranty - Years: 3
Timing Belt Interval Mileage: 130000
Vehicle Homologation Class: M1
Performance
Engine Torque - LBS.FT: 266
Engine Torque - MKG: 36.7
Engine Torque - RPM: 1600
Test Cycles
Emissions Test Cycle: WLTP
RDE Certification Level: RDE 2
Tyres
Tyre Size Front: 205/55 R17
Tyre Size Rear: 205/55 R17
Tyre Size Spare: TYRE REPAIR KIT
Vehicle Dimensions
Height (including roof rails): 1467
Width (including mirrors): 1994
Weight and Capacities
Fuel Tank Capacity (Litres): 56.5
Gross Vehicle Weight: 2117
Luggage Capacity (Seats Down): 1700
Luggage Capacity (Seats Up): 640
Max. Towing Weight - Braked: 2000
Max. Towing Weight - Unbraked: 750
Turning Circle - Kerb to Kerb: 10.4
